DB9 pin Joystick Plug

DB9 pin classic Joystick plug enclosure design for making new joystick plugs (ones like you'd find on the C64's, Amiga's or Atari's etc)

The plug consists of three parts. A top half, bottom half and the connector core piece, where the wiring and contacts mount in place.

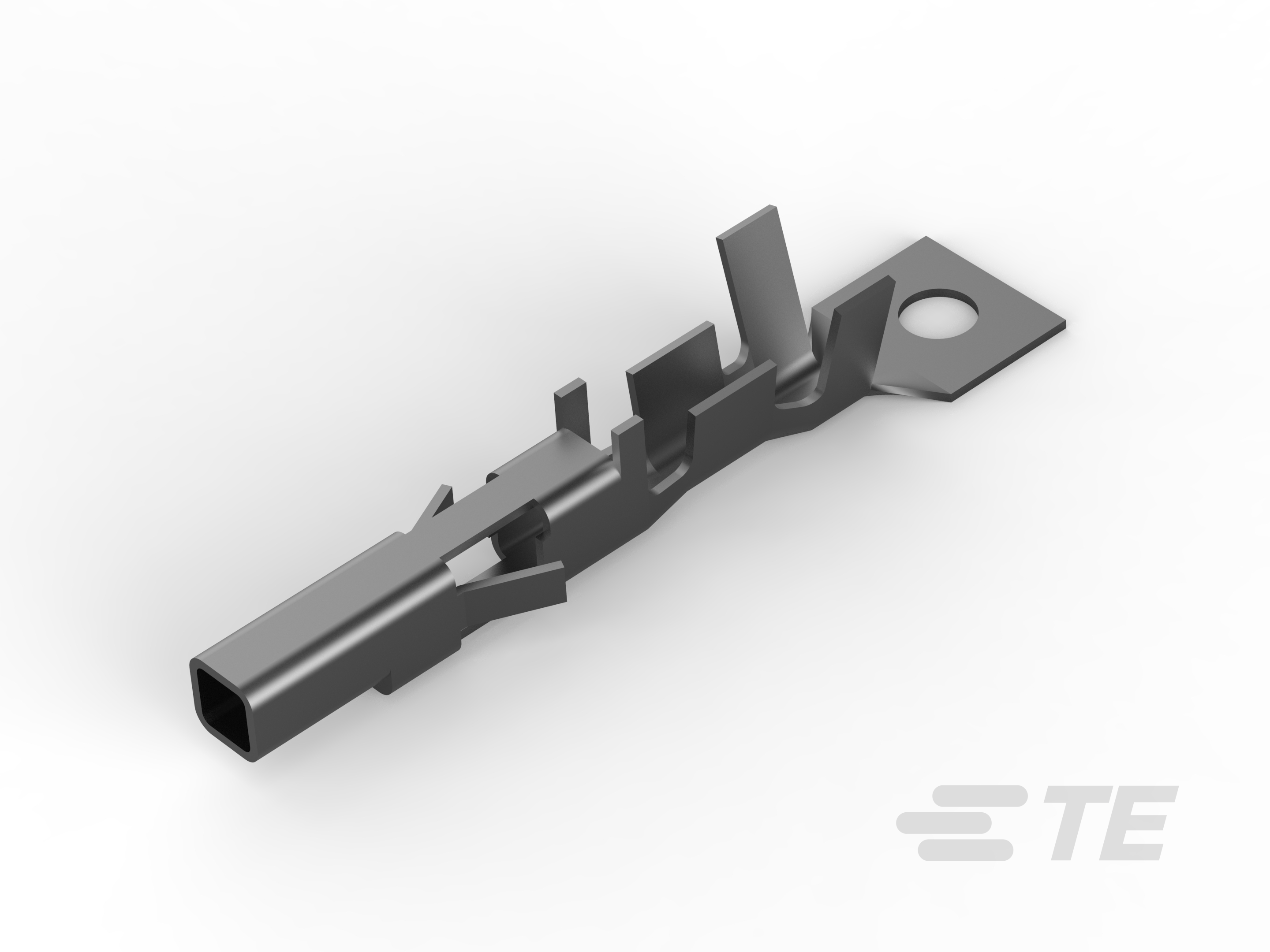

The top and bottom position together around the core, with a single screw, clamping the piece strongly for reliable repeat use in the joystick ports. The core's holes take nine of this kind of **[socket contact](https://www.te.com/en/product-794958-1.html)** below...


...which can be soldiered to the joystick's wiring cables, extending out the back of the plug to the the joystick.
