LED digit layout
by phooky
4
Downloads
9
Likes
0
Makes

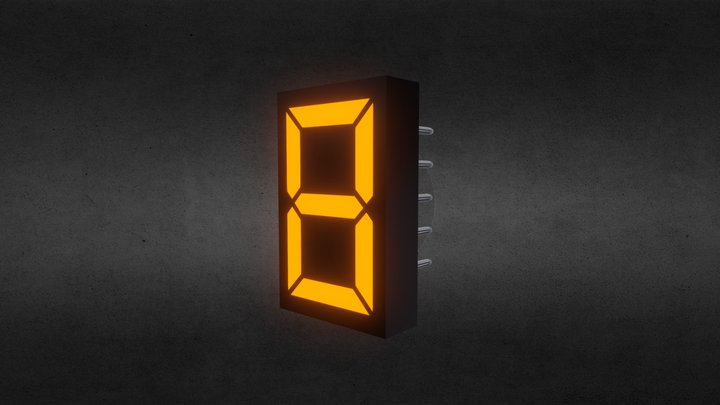

This is a layout for making a 170mm high single digit LED display. I use these to create the digits for my wall clocks. 10 standard 5mm (T1 3/4) LEDs are used for each segments (a total of 80 LEDs per digit).
I've also included a design for a small single-sided board that you can use to easily wire up your individual segments.
I've also included a design for a small single-sided board that you can use to easily wire up your individual segments.
