Linear Motion Anti-Backlash Nut

by Arron_mollet22

144 Downloads

103 Likes

0 Makes

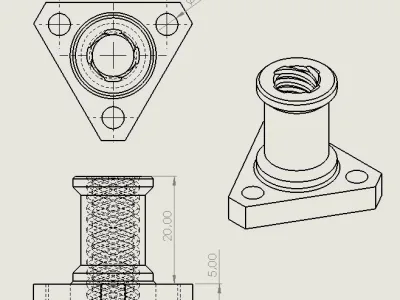

This is a printable anti-backlash nut that works with 8mm leadscrews with 2mm pitch. I have been using these printed versions on a cnc router for months and they work great. An application like a 3d print which requires much less torque would work wonderfully too. I will include a link to a few different lead screws on amazon that would work with this print.

500mm length: https://amzn.to/2xDROwj

400mm length: https://amzn.to/2xElObr

300mm length: https://amzn.to/2xyDt40

200mm length: https://amzn.to/2NXtVdf

2mm pitch 3d printer 8mm leadscrew anti-backlash cnc CNC Machine gt2 2mm pitch leadscrew Leadscrew Nut lead screw linear motion openbuilds 2mm pitch 3d printer 8mm leadscrew anti-backlash cnc CNC Machine gt2 2mm pitch leadscrew Leadscrew Nut lead screw linear motion openbuilds
