Minimal Retro Microphone

0 Downloads
3 Likes
0 Makes
Go to Model

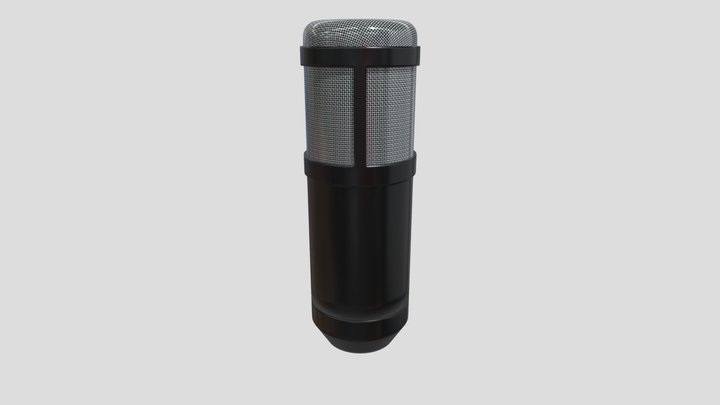

Made this microphone housing design based off some cheap microphone I had lying around.I just took the internals and built this around it so the microphone can actually pick up my voice. I reused the foam and metal cover of the condenser which you could too. DimensionsMicrophone diameter hole: 9.7mmScrew hole 1: 2mm (Got these off the original microphone, something a little larger will be fine)Screw hole 2: 2.8mm (Screws that came with the A1 are used.Magnet size: 5mm, sized to 5.1mm for snug fit (needs glue)Cable diameter should be less than 3.55mm (Ideally 3.4mm max)Need approx. 30mmx30mm of foam and metal mesh for the coverMagnets aren't necessary but its there incase you want to make your own mounting system for the bottom/ make it taller or angled. Be gentle when applying pressure to the sides of the upper housing as it can crack. This will not be a problem if you have dried filament or use PETG. Use supports when printing housing, they are easy to remove, even the inside ones
Category
Electronics
Source
MakerWorld
Published
Updated
What you need to print this: Intermediate Low confidence
Why?
significant post-processing
Single piece Hardware needed
Supports 1/3
Assembly 0/3
Settings 1/3
Bed size 0/3
Post-process 2/3
Printer
FDM / FFF
File format
STL
Material
PETG
Post-processing
Gluing, Hardware
Software
Cura, PrusaSlicer, or similar
