USB Type C Panel Mount with Screw Lock
door ilikecake1
2
Downloads
0
Likes
0
Makes
A panel mount USB type C socket with a single screw for a [screw locking cable](https://www.usbgear.com/cg-g2cctssl-05m.html). I could not find a good small panel mount USB type C connector that included a screw lock, so I made my own. This will also work fine with normal (not screw locking) usb C cables.
I have included four versions of the body.

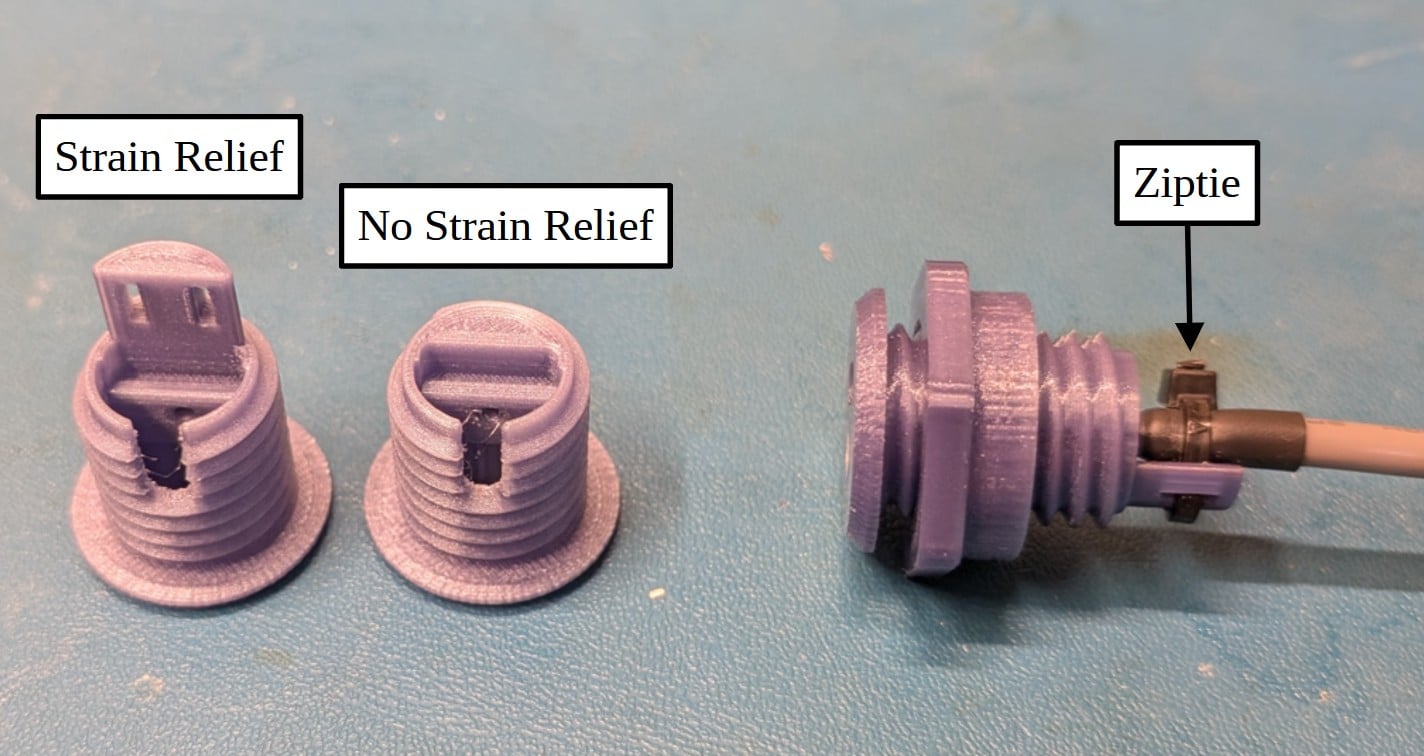

* The parts with strain relief have an extended tab with two holes for a ziptie. You can use this to hold the cable to keep from flexing the solder joints.
* The parts labeled 'short' place the end of the usb C connector flush with the front of the body. This makes the part shorter, but it also means that there will be a gap of ~.1" between the overmold on the USB cable and the body. This may make it tough to engage the screw lock.
* The parts labeled 'long' set back the USB C connector so that the overmold of the USB cable
I have included four versions of the body.
* The parts with strain relief have an extended tab with two holes for a ziptie. You can use this to hold the cable to keep from flexing the solder joints.
* The parts labeled 'short' place the end of the usb C connector flush with the front of the body. This makes the part shorter, but it also means that there will be a gap of ~.1" between the overmold on the USB cable and the body. This may make it tough to engage the screw lock.
* The parts labeled 'long' set back the USB C connector so that the overmold of the USB cable
